EOSlift 3 Wheel Electric Forklift 3300 lbs Capacity features electric-powered drive and lifting capable of lifting loads to an outstanding height of 177" at faster speeds than usual. It is constructed out of steel with robotic welding for maximum durability and strength built for any type of heavy duty industrial applications.
This multi-purpose Side Shifting Electric-Powered Forklift features a three wheeler design making it your best choice for material handling done in narrow aisles and tight spaces. It also has tilting-capabilities offering more versatility and flexibility when it comes to dealing with your cargo.
It is equipped with a long-lasting integral 24V 480Ah battery specifically made for heavy duty usage lasting you a whole days’ worth of work in intermittent use.
Model CPDS15
Mast Type Duplex
Power Type Battery
Operation Type Seated
Rated Capacity 3306.93 lbs.
Load Center 19.68 in.
Wheelbase 38.38~38.97~40.15 in.
Service Weight 3747.85 lbs.
Wheels Chassis:
Wheel Type PU
Load Wheel 11.22 x 3.93 in.
Drive Wheel 9.05 x 4.33 in.
Number of Wheels: front/rear
Wheel Tread, load side 31.65 in.

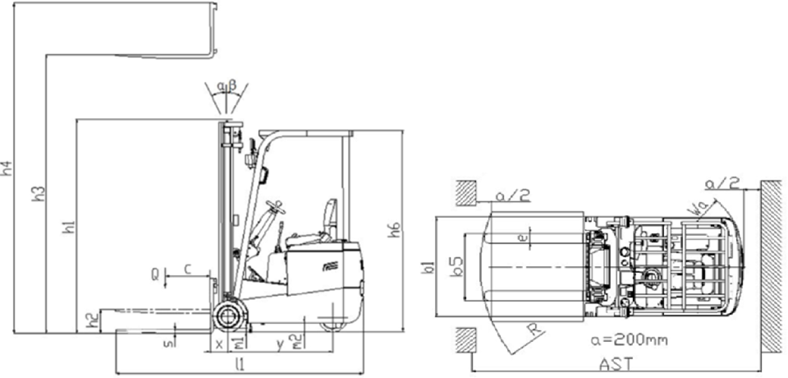

Dimensions:
Tilting 2/4/
Mast Closed Height 78.54 in.
Free Lift Height 4.33 in.
Lift Height 177 in.
Mast extended height w/ load-backrest 138.97 in.
Overall Length 91.73 in.
Overall Width 35.90 in.
Fork Size 36.22/3.93/1.37 in.
Fork Outside Width 8.66~24.40 in.
Handle Height -
Mast Ground Clearance 3.54 in.
Aisle width for pallet 39.37 x 47.24 in.: 108.66 in.
Aisle width for pallet 31.49 x 47.24 in.: 112.99 in.
Turning Radius 49.40 in.
Performance:
Driving Speed (load/unload) 3.7/7 mph
Lifting Speed (load/unload) 5.9/7.48 in/s
Lowering Speed (load/unload) 7.87/5.11 in./s
Max. gradeability (load/unload) 8/10
Brake Type Hydraulic+ Electromagnetic
Drive:
Driving Motor/Power (S2-60min) 1.5 kw
Lifting Motor/Power (S3-15%) 2 kw
Battery Voltage/Capacity 24/300 V/Ah
Battery Weight 610.68 lbs.
Steering System EPS
Product Features:
- The maintenance-free AC drive system makes the whole forklift respond quickly and accurately.
- Smaller diameter load wheel and lower front overhang makes operation safer.
- Multi-way valve controls lifting/lowering and tilting accurately,
- Wide-view mast design brings a wider operation vision, greatly improves work efficiency and safety.
Other Features:
- High configuration mini 3-wheels electric forklift
- AC driving motor
- CURTIS controller
- 24V/480Ah lead-acid battery
- Electric power steering
- Drive wheel type: PU wheel
- Load wheel type: solid rubber
- with luxury seat
- with curved mirror
- with warning light
- with intelligent charger
