Majorlift MRTH40 Electric Stand-Up Reach Truck, 4000 lb Capacity 275 Lift
The Majorlift Stand-up Pantograph Reach Truck is equipped with a high-power drive, high frequency, and high efficiency. It operates quietly and features stepless speed regulation and reverse braking. Additionally, it offers perfect temperature protection and compensation functions to achieve thermal stability. This versatile truck is well-suited for tasks such as loading and unloading trucks, handling goods in loading docks, managing stock rooms, and operating on manufacturing floors and in warehousing environments.
The safety features of this reach truck include standard electronic power steering, which makes steering easier, more flexible, and more accurate. This helps reduce the operator’s labor intensity. Furthermore, the truck has an automatic speed limit for corners, enhancing safety during maneuvers. Additionally, its open battery design allows for convenient battery exchange and maintenance.
Great choice for Highly Productive and Versatility.
Features:
• MPN: MRTH40
• Load Capacity 4000 lbs.
• Raised Height 275" (22.91ft)
• Reach Distance of 22.44"
• Triple Mast
• Free Lift 80”
• Tilt
• Side Shift
• Adjustable Forks 7.9-35"
• Fork Length 45.3"
• Curtis Instrument Controller
• EPS (Electronic Power Steering)
• German AC Drive Motor
• Battery 48V/420Ah
• Charger 48V/65A 480V
• Polyurethane Wheels
• Ergonomic Handle and Controls
• Steel Construction
• Robotic Welding
• Charger Included
• Batteries Included
• 3 Years Limited Warranty

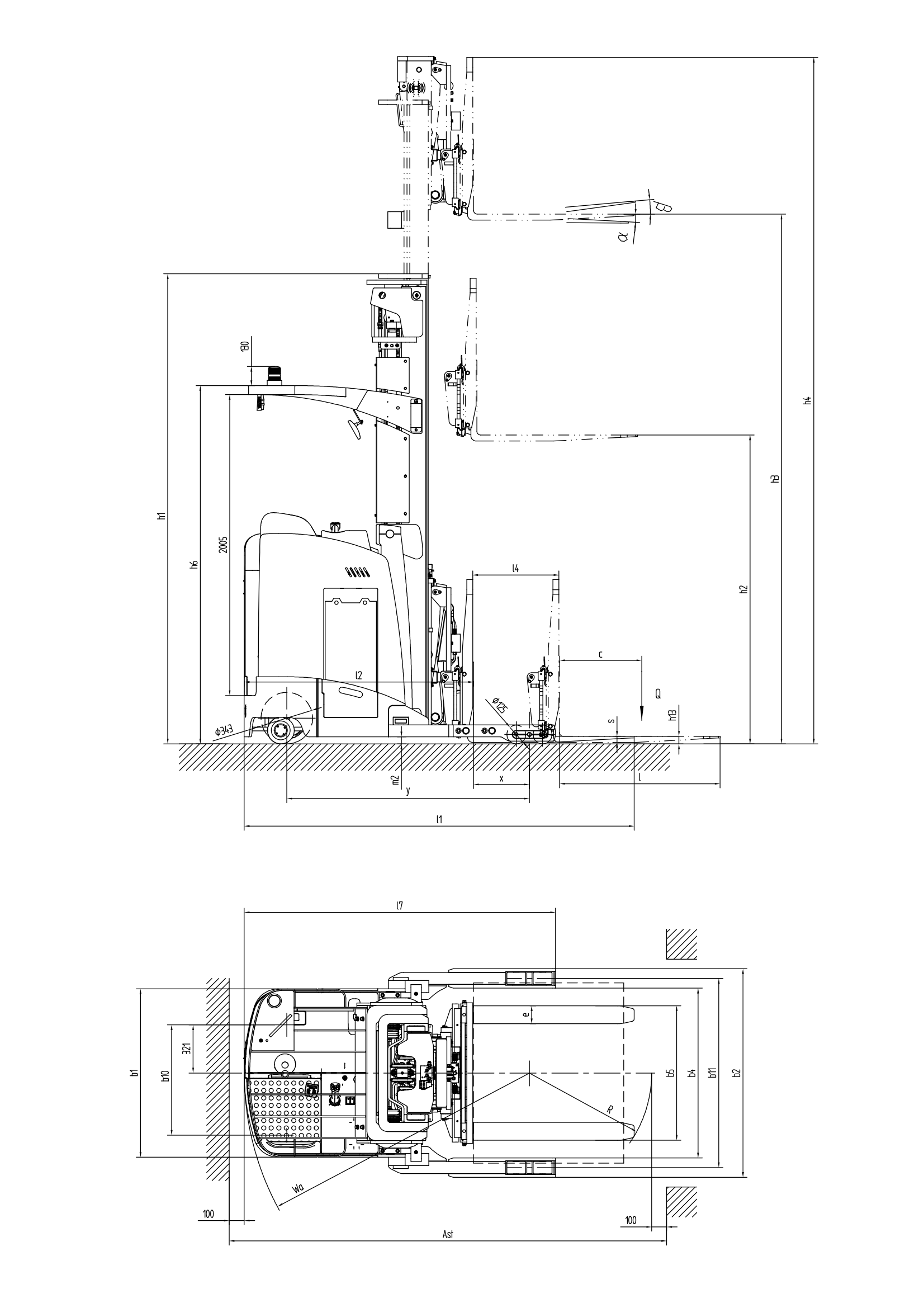

SPECIFICATIONS:
| Identification | |||
| Model | MRTL40 | MRTH40 | |
| Power unit | Electric | Electric | |
| Operation | Stand-Up | Stand-Up | |
| Rated capacity | lbs/kg | 4000 / (1800) | 4000 / (1800) |
| Load centre | c in / mm | 24 / (600) | 24 / (600) |
| Axle centre to fork face | x in / mm | 15 / (375) | 15 / (375) |
| Wheel base | y in / (mm) | 63.7 / (1618) | 63.7 / (1618) |
| Weights | |||
| Service weight with battery | lb / (kg) | 8191 / (3670) | 9330 / (4232) |
| Wheels/Tires | |||
| Wheels type | PU | PU | |
| Driving wheel size | in / (mm) | 13.5x5.2 / (343×132) | 13.5x5.2 / (343×132) |
| Bearing wheel size | in / (mm) | 4.9x3.2 / (125×82) | 4.9x3.2 / (125×82) |
| Wheels, number front/rear (x = driven) | 1x, 2/4 | 1x, 2/4 | |
| Track width drive side | b10 in / (mm) | 29 / (735) | 29 / (735) |
| Track width load Side | b11 in / (mm) | 50 / (1260) | 50 / (1260) |
| Dimensions | |||
| Mast/fork carriage tilt, forward/backward | a/b (°) | 2 / 4 | 2 / 4 |
| Height of mast, lowered | h1 in/mm) | 96 / (2449) | 123.3 / (3130) |
| Free lift | h2 in / (mm) | 53.1 / (1350) | 79.9 / (2030) |
| Lift | h3 in / (mm) | 196 / (5000) | 276 / (7000) |
| Height of mast, extended | h4 in / (mm) | 240 / (6120) | 320 / (8120) |
| Height of overhead guard (cabin) | h6 in/mm | 94 / (2386) | 94 / (2386) |
| Fork Height, Lowered | h13 in/mm | 2 / (50) | 2 / (50) |
| Overall length | l1 in / (mm) | 102 / (2597) | 102 / (2597) |
| Length to fork face | l2 in / (mm) | 60.1 / (1527) | 60.1 / (1527) |
| Overall width | b1/ b2 in / (mm) | 44/55 / (1120/1390) | 44/55 / (1120/1390) |
| Fork dimensions | (s/e/l) in | 1.6 / 4.7 / 42.1 | 1.6 / 4.7 / 42.1 |
| (s/e/l) (mm) | 40 / 120 / 1070 | 40 / 120 / 1070 | |
| Width of forks | b5 in / (mm) | 35 / (890) | 35 / (890) |
| Distance Between Suporrts arms/loading surfaces | b4 in / (mm) | 44.4 / (1130) | 44.4 / (1130) |
| Reach distance | l4 in / (mm) | 22.4 / (570) | 22.4 / (570) |
| Min.Ground clearance | m2 in / (mm) | 1.8 / (46) | 1.8 / (46) |
| Aisle width with pallet 39.4" x 47.2" | Ast in / (mm) | 117 / (2970) | 117 / (2970) |
| Aisle width with pallet 31.5" x 47.2" | Ast in / (mm) | 118.9 / (3020) | 118.9 / (3020) |
| Min.Turning radius | Wa in / (mm) | 75 / (1905) | 75 / (1905) |
| length across wheel arms | l7 in / (mm) | 81.7 / (2074) | 81.7 / (2074) |
| Performance | |||
| Travel speed,laden | mph / (km/h) | 5.9 / ( 9.5) | 5.9 / ( 9.5) |
| Travel speed, unladen | mph / km/h) | 5.9 / ( 9.5) | 5.9 / ( 9.5) |
| Lifting speed, with/without load | in/s / (mm/s) | 7.5/9.1 / (190/230) | 7.5/9.1 / (190/230) |
| Lowering speed, with/without load | in/s / (mm/s) | 11.8/11.4 / (300/290) | 11.8/11.4 / (300/290) |
| Reach speed,laden/unladen | in/s / (mm/s) | 3.9/4.3 / 100/110 | 3.9/4.3 / 100/110 |
| Gradability, Load/unload | (%) | 6/10 | 6/10 |
| Side Shifting Forks | 3 Way Valve | 3 Way Valve | |
| Service brake | Electromagnetic | Electromagnetic | |
| Drive | |||
| Drive motor, 60 minute rating | (kW) | 6 | 6 |
| Lift motor rating at S3 15% | (kW) | 11 | 11 |
| Lifting motor | (V/W) | 48V / 1100 | 48V / 1100 |
| Battery voltage/rated capacity | (V/Ah) | 48/420 | 48/420 |
| Battery weight (± 5%) | Lbs / (kg) | 1543 / (700) | 1543 / (700) |
| Others | |||
| Type of drive control | German AC | German AC | |
| Noise level at operator‘s ear | (dB(A)) | ≤75 | ≤75 |
