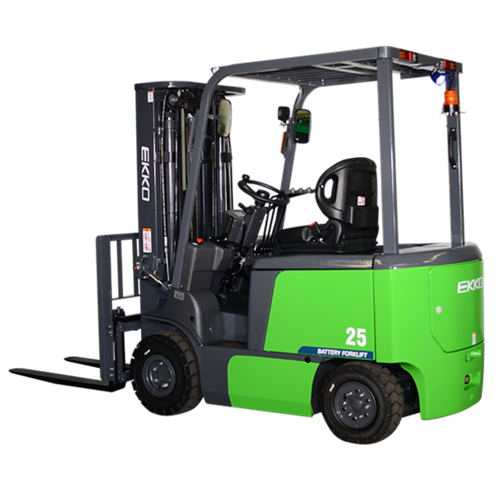

EKKO EK25T-Li 4 Wheel Electric Forklift 5,000 lb Capacity, 185 inch Lift
The EKKO EB14C-118 Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance. It features a dual damping drive system, enhancing handling performance, operational efficiency, and operator comfort.
Features:
- Load Capacity 3000 lb
- Raised Height 118” (9.83 ft.)
- Adjustable Forks 8.7-32.1“
- Adjustable Legs 35.4-51.2”
- Fork Length 45.3“
- Curtis Instrument Controller
- DC Drive Motor
- Battery 24V/85Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Dual Damping Drive System
- Steel Construction
Specifications:
| Model | EK25T-Li | |
| Type of operation | Electric | |
| Load Capacity | LBS | 5000 |
| Load Center | in | 24 |
| Lift height | in | 185 |
| Wheelbase | in | 62.9 |
| Service Weight | LBS | |
| Tire material | Solid Pneumatic Tire | |
| Service Brake | Hydraulic Floor Pedal | |
| Overall width | in | 45.2 |
| Overall length with forks | in | 144.6 |
| Overall length without forks | in | 99.6 |
| Min ground clearance (at the mast) | in | 4.3 |
| Mast Overall height | in | 83 |
| Free lifting height | in | 43.7 |
| Overall Height w/ forks lifted | in | 158.6 |
| Fork Size | in | 42.1x4.8x1.5 |
| Battery | V/ Ah | 80V/202Ah |
| Engine Mode | AC Drive Motor |
